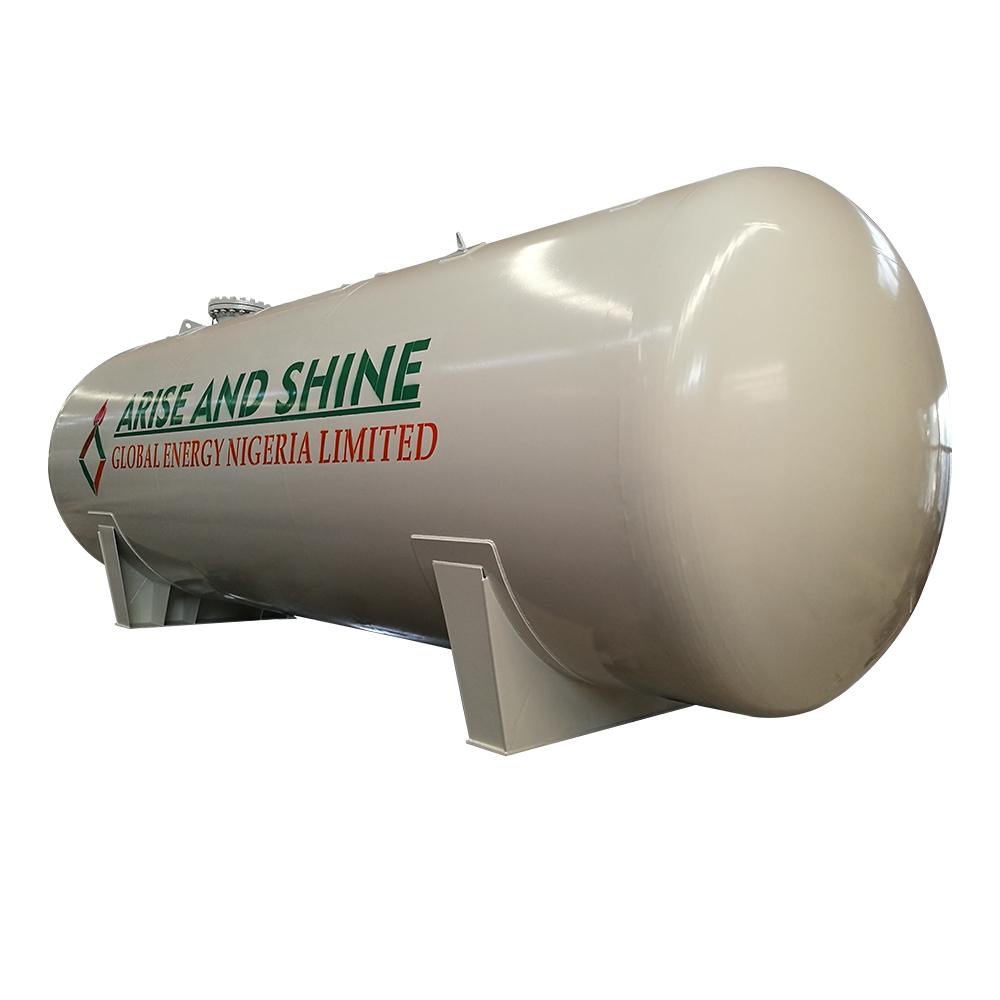

40 M3 Lpg Tanker

Lpg tanker is made of high-quality pressure vessels steel: Q345R or ASME SA516M, can be equipped with some necessory accessory to meet with the bascial use condition. In detailed production process, lpg tanker need to go through 23 steps strict procedures. High quality material and strict process make the lpg tanker reliable quality.

40m 3 lpg tanker can implement China National steel pressure vessel standard GB150.1`4-2011 or ASME boiler and pressure vessel standard, meet with those requirments from the customers in China and all over the world.

40 M3 Lpg Tanker, LPG Tanker 40 M3 Lpg Tanker, LPG Tanker 40 M3 Lpg Tanker, LPG Tanker 40 M3 Lpg Tanker, LPG Tanker

40 M3 Lpg Tanker

lpg tanker

Lpg tanker Application and Introduction:

lpg(liquefied petroleum gas) tanker  is a special purpose pressure vessels ,mainly used to store propane, liquid ammonia,  etc.  According to use conditions, lpg tankercan be designed as underground lpg tanker and above-ground lpg tanker.



Product Features

  • 40 m3 volume, 20 ton propane

  • with China or ASME standard accessory



Main parameter

Product name

40m3 lpg tanker

Tank parameter

Overall dimension(L*W*H)(mm)

10040*2324*2914

Curb weight (kg)

Approx 8630

Tank material

Q345R

Tank thickness(mm)

12mm

Head type and thickness(mm)

two oval-shaped head 14mm

Design pressure(Mpa)

1.77Mpa

Test pressure(Mpa)

2.1Mpa

Design temperature(℃)

-19 ℃to 50 ℃

Storage medium

Propane

Paint process

First step: Blowing sand; second step: Spray   Antirust primer; third step: Spray topcoats

configuration

Manhole, sewage outlet, liquid inlet   & outlet, gas phase inlet & outlet , etc

Manufacturing standards

ChinaNewest Pressure   Vessel Standard: GB150-2011 or ASME

Accessories

standard

Chinatop brand safety   valve, thermometer, pressure gauge, emergency shut-off valve, magnetic level gauge,   fire extinguisher, loading and unloading valve, etc

Product detail

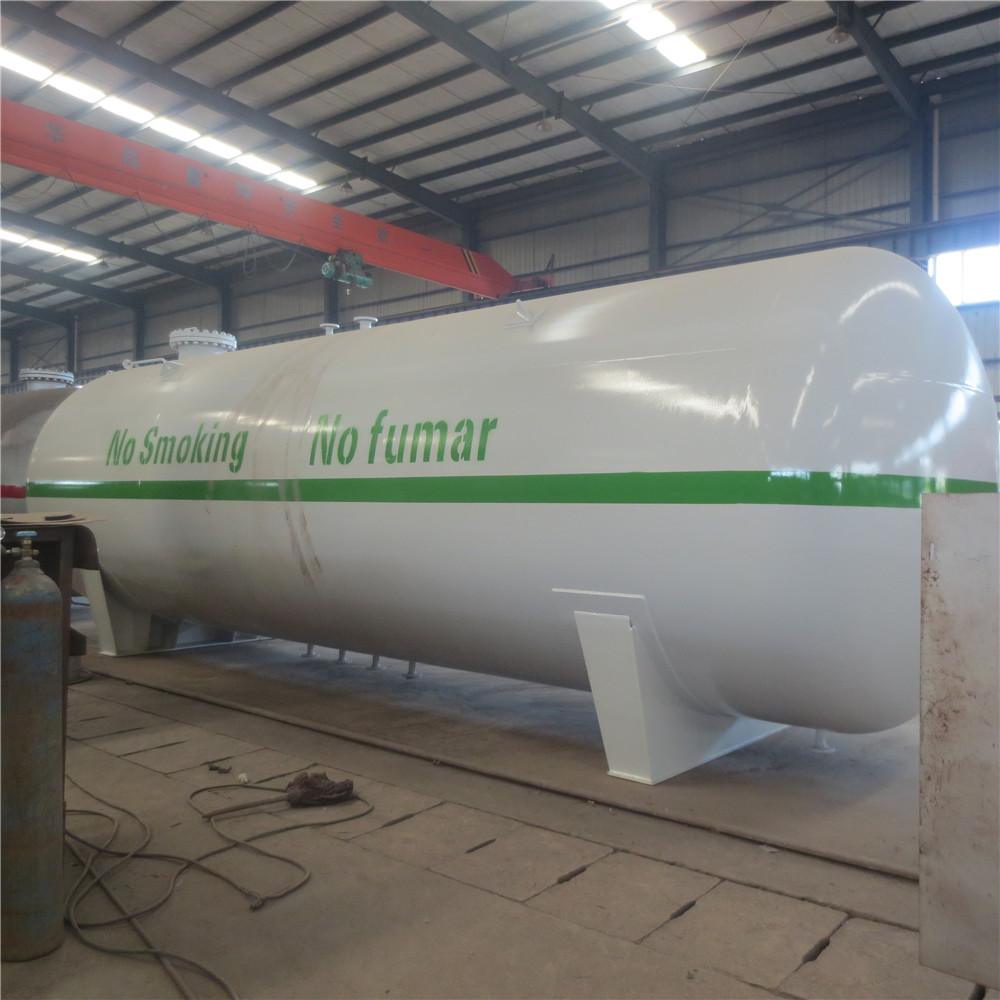

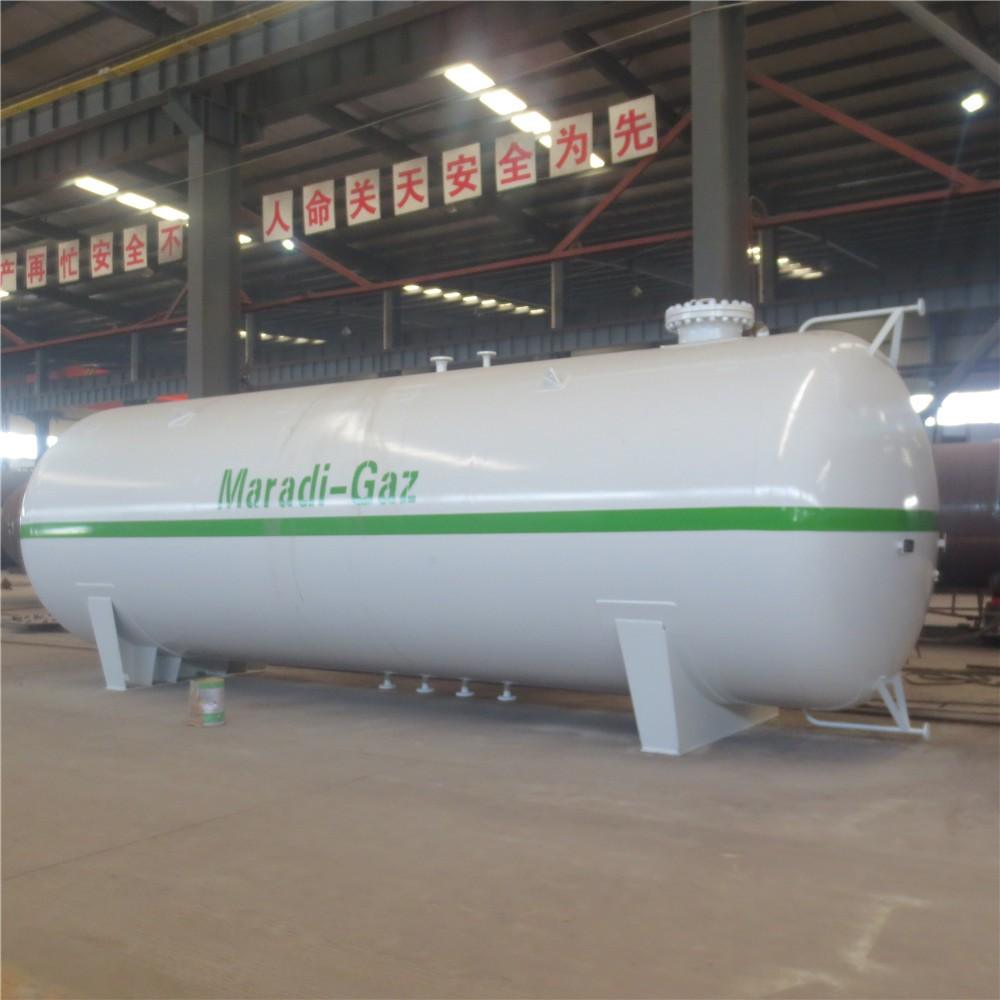

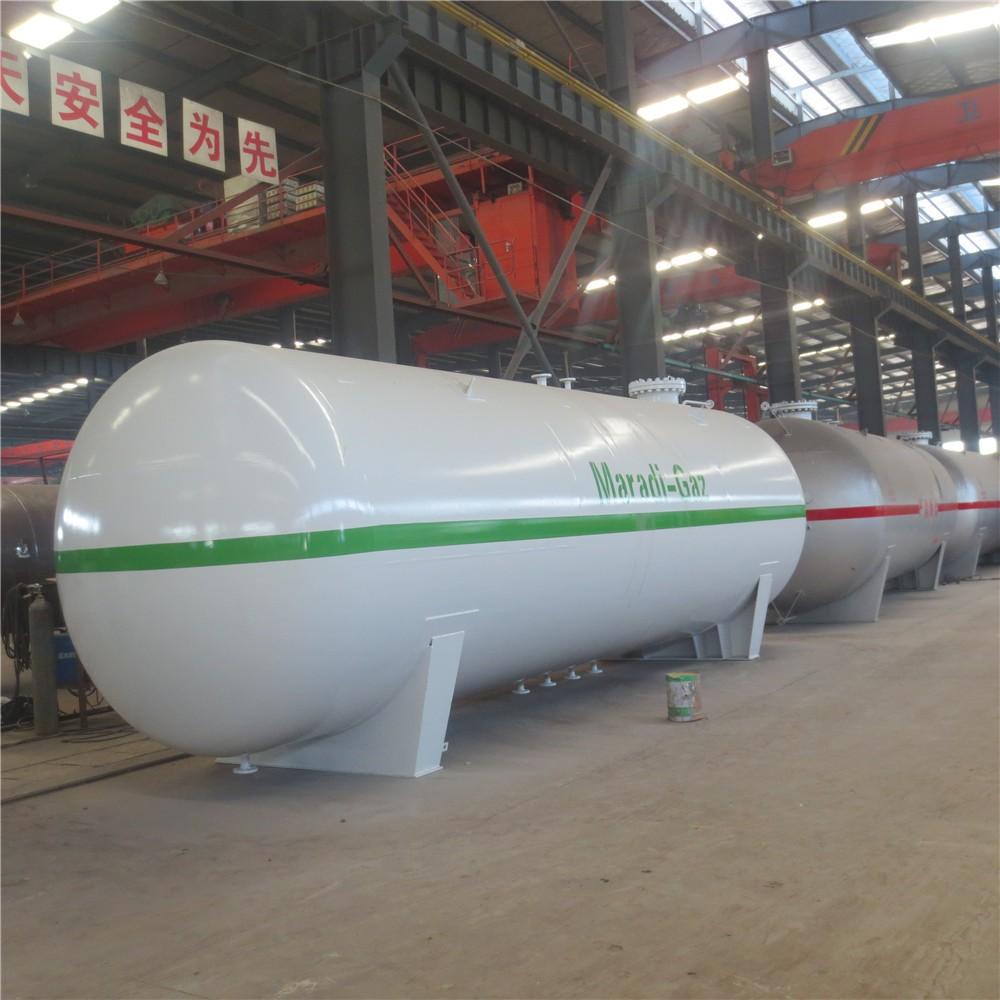

40 m3 lpg tanker

40 M3 Lpg Tanker, LPG Tanker40 M3 Lpg Tanker, LPG Tanker

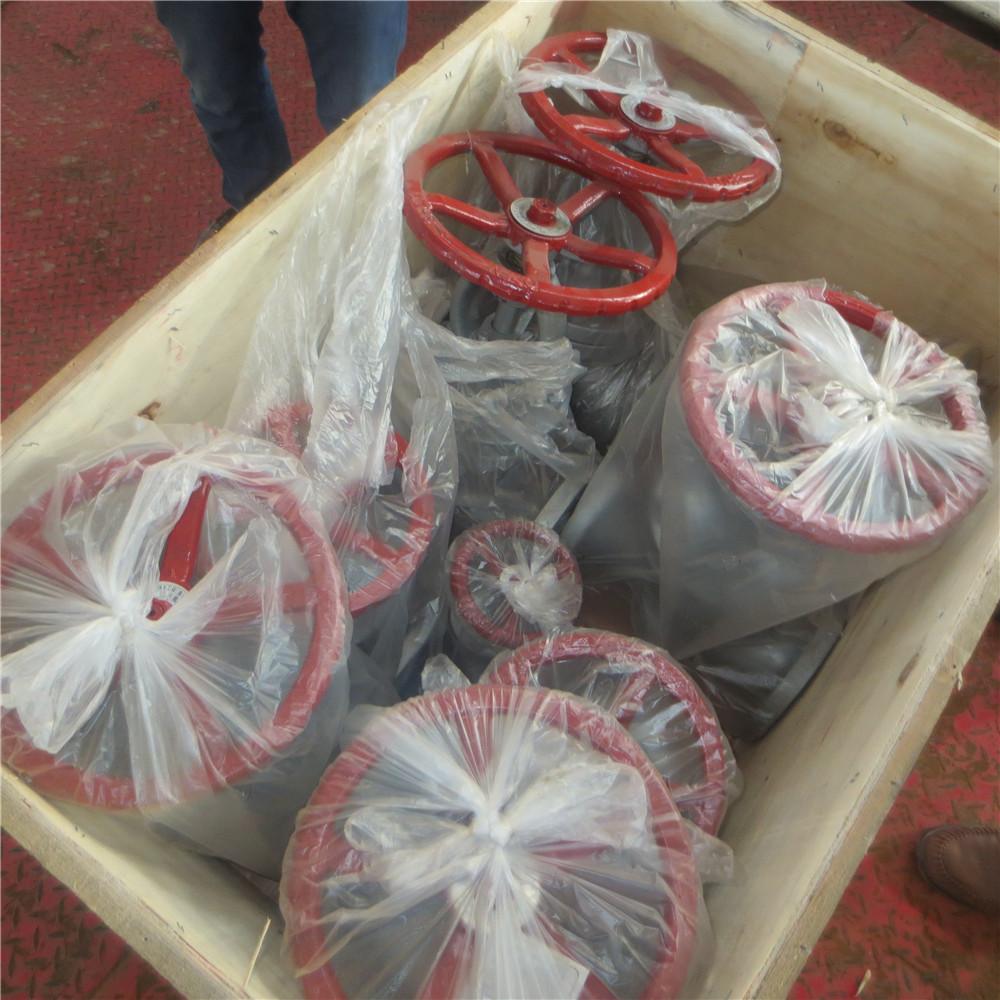

Accessory valve packaged in wooden box

40 M3 Lpg Tanker, LPG Tanker

Q: Are you a trading company or a manufacturing factory?

A: We are both. We have operated our own factory for over a decade and recently established a trading company to better serve our overseas customers. We welcome your inquiries and factory visits.

Q: What is your typical delivery time?

A: Our delivery time usually ranges from 20 to 50 days after receiving the advance payment. The exact timeline depends on the specific items and quantities in your order.

Q: How do you ensure product quality?

A: We maintain strict quality control standards through our ISO9001:2008 certified system. Additionally, our professional Quality Control team conducts thorough inspections to guarantee the excellence of our products.

Q: What are your payment terms?

A: We require a 40% deposit via T/T (Telegraphic Transfer), with the remaining 60% due before delivery. We will provide photos of the products and packaging for your approval before the final payment.

How are your trucks shipped?

A: Large trucks are typically shipped via RORO (Roll-On/Roll-Off) or bulk cargo ships. Smaller vehicles can be transported in containers. Please contact us for a detailed shipping quotation.

Q: Do you offer customized products?

A: Absolutely. We can design and manufacture customized products to meet your specific requirements.

Q: What kind of after-sales service do you provide?

A: We offer a five-year warranty on our products, covering manufacturing defects. If any quality issues arise within this period, we will repair or replace the product at our expense. For issues outside the warranty coverage, we provide after-sales service at the customer’s expense.

Q: What is the meaning of LPG tanker?

A: An LPG tanker is a vehicle designed to transport liquefied petroleum gas (LPG), which includes propane and butane, in bulk.

Q: What is the size of an LPG road tanker?

A: An LPG road tanker typically has a nominal capacity of around 28 m³ (approximately 7,400 gallons).

Q: What is an LPG tank truck?

A: An LPG tank truck is a specialized vehicle equipped with tanks for transporting liquefied petroleum gas safely and efficiently.

Q: What is the meaning of LPG in trucks?

A: LPG stands for liquefied petroleum gas, which is used as fuel for vehicles, including trucks designed to transport it.

Q: What is the capacity of a propane tanker truck?

A propane tanker truck typically has a capacity ranging from 5,000 to 10,000 gallons (approximately 19,000 to 38,000 liters).

Q : What is the capacity of a gas tanker truck?

A gas tanker truck can hold between 5,000 to over 11,000 gallons (approximately 19,000 to 42,000 liters) depending on its design.

Q : What is the size of an LPG tanker?

The size of an LPG tanker varies, but it generally has a capacity of around 28 m³ (about 7,400 gallons).

Q : How much does an LPG tanker cost?

The cost of an LPG tanker can range from $25,000 to $100,000 or more, depending on specifications and features.
