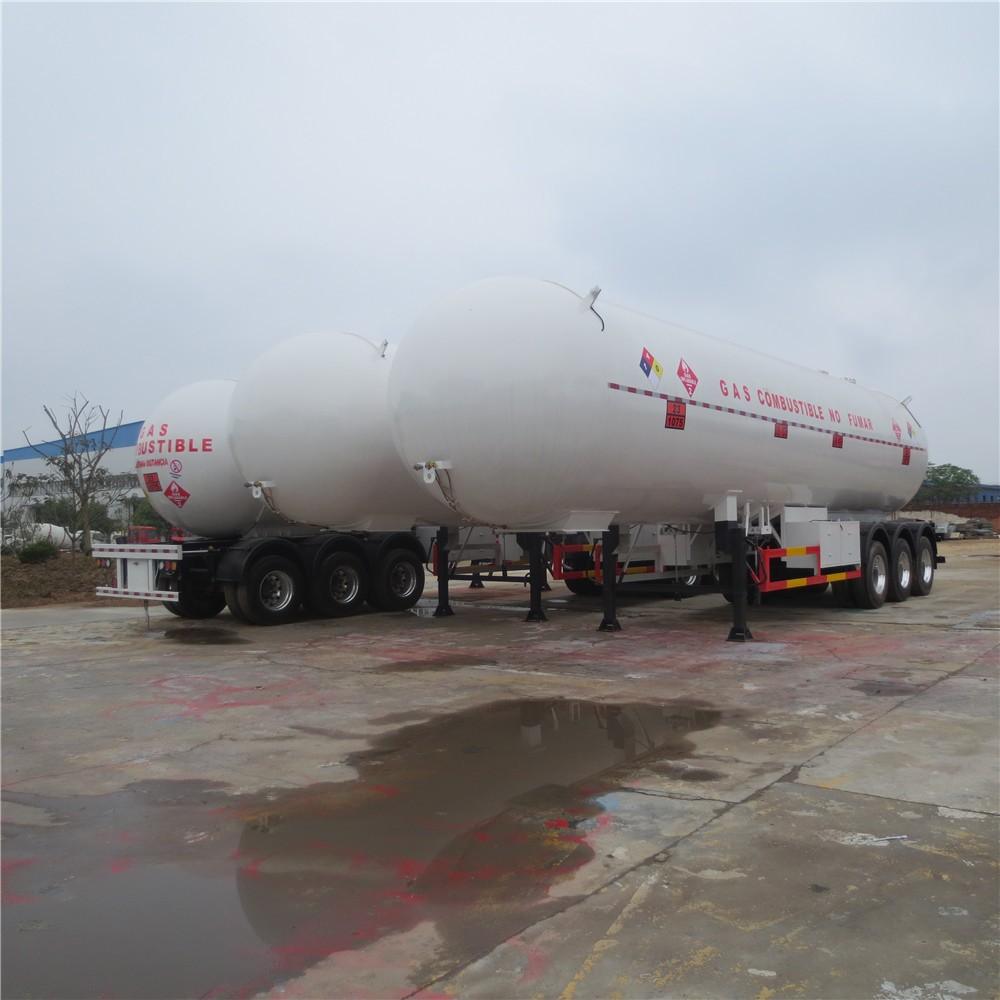

59.5 M3 25ton Lpg Semitrailer

Lpg semitrailer is one kind semitrailer type lpg tank, can transport large volume of lpg gas. Lpg semitrailer is composed of high quality lpg tank and 3 axle running gear. Lpg tank is made of China high-quality special steel for pressure vessels, running gear is mainly composed of 3 pieces BPW axle, 25 ton JOST kingpin, JOST landing gear, subframe, etc.

Lpg semitrailer can be designed according to China National steel pressure vessel standard GB150.1`4-2011 or ASME boiler and pressure vessel standard, lpg semitrailer is very popular in many countries including africa, South America, Middle -Asia, etc. We sale 500 pieces lpg semitrailer each year.

59.5 M3 25ton Lpg Semitrailer, LPG Tanker 59.5 M3 25ton Lpg Semitrailer, LPG Tanker 59.5 M3 25ton Lpg Semitrailer, LPG Tanker 59.5 M3 25ton Lpg Semitrailer, LPG Tanker

59.5 M3 25ton Lpg Semitrailer

lpg semitrailer

Lpg semitrailer Application

Lpg semitrailer is mainly used to transport propane, etc lpg gas, the loading capacity can be from 40.5cbm to 59.52cbm.  The lpg semitrailer is composed of lpg tank made of Q345R, Q370R, Q420R,  SA516M, etc. and high quality running gear.

Product Features

  • 25ton lpg gas capacity

  • China top pressure vessels Special steel

  • International brand accessory: USA  Rochester or Rego valve and lever gauge, etc

  • Factory direct sale, quality warranty and fast delivery and good after-sales service


Main parameter

Product name

59.5 M3 25ton Lpg Semitrailer

Tank parameter

Overall dimension (L*W*H)(mm)

13000*2500*3990mm

Storage medium

Propane

Volume(m3)

59.53m3/59530L

Curb weight (kg)

14997

Tank material

Q420R and Q345R( Pressure vessel special  steel plate)

Tank thickness(mm)

body Q420 11mm/ Head Q345R11mm

Head type

two oval-shaped head

Design pressure(Mpa)

1.61mpa

Test pressure(Mpa)

2.1Mpa

Design temperature()

-19 to 50

Paint process

First step: Blowing sand; second step: spray   antirust primer; third step: spray topcoats

Accessories

With China top brand safety valve,   thermometer, pressure gauge, emergency shut-off valve, China brand fall float lever gauge(Optional America magnetic Rochester brand ), fire extinguisher,   anti-static ground tape, two valve boxes, tool box,

Manufacturing standards

China Newest  Pressure Vessel Standard: GB150-2011( or ASME standard)

Certificate

Factory Inspection Certificate(optional   Third-party Inspection (BV) with additional cost)

Chassis parameter

Axle number

3

Payload

12000kg

Suspension type

BPW Leaf spring suspension

Brakes

4-channel air brake compressed air   brake with ABS

electrical

24V, with  pneumatic fittings and   seven pole socket

Tire number

12 with a spare tire

Tire type

AEOLUS tires 12R22.5

King pin

JOST 3-1/2

Outrigger

25 ton JOST outrigger manually operated   with two speed


Product detail

25 ton lpg semitrailer

59.5 M3 25ton Lpg Semitrailer, LPG Tanker

59.5 M3 25ton Lpg Semitrailer, LPG Tanker

59.5 M3 25ton Lpg Semitrailer, LPG Tanker

LPG semitrailer accessories

25 ton lpg semitrailer

ASME Certificate

lpg semitrailer

Q: Are you a trading company or a manufacturing factory?

A: We are both. We have operated our own factory for over a decade and recently established a trading company to better serve our overseas customers. We welcome your inquiries and factory visits.

Q: What is your typical delivery time?

A: Our delivery time usually ranges from 20 to 50 days after receiving the advance payment. The exact timeline depends on the specific items and quantities in your order.

Q: How do you ensure product quality?

A: We maintain strict quality control standards through our ISO9001:2008 certified system. Additionally, our professional Quality Control team conducts thorough inspections to guarantee the excellence of our products.

Q: What are your payment terms?

A: We require a 40% deposit via T/T (Telegraphic Transfer), with the remaining 60% due before delivery. We will provide photos of the products and packaging for your approval before the final payment.

How are your trucks shipped?

A: Large trucks are typically shipped via RORO (Roll-On/Roll-Off) or bulk cargo ships. Smaller vehicles can be transported in containers. Please contact us for a detailed shipping quotation.

Q: Do you offer customized products?

A: Absolutely. We can design and manufacture customized products to meet your specific requirements.

Q: What kind of after-sales service do you provide?

A: We offer a five-year warranty on our products, covering manufacturing defects. If any quality issues arise within this period, we will repair or replace the product at our expense. For issues outside the warranty coverage, we provide after-sales service at the customer’s expense.

Q: What is the meaning of LPG tanker?

A: An LPG tanker is a vehicle designed to transport liquefied petroleum gas (LPG), which includes propane and butane, in bulk.

Q: What is the size of an LPG road tanker?

A: An LPG road tanker typically has a nominal capacity of around 28 m³ (approximately 7,400 gallons).

Q: What is an LPG tank truck?

A: An LPG tank truck is a specialized vehicle equipped with tanks for transporting liquefied petroleum gas safely and efficiently.

Q: What is the meaning of LPG in trucks?

A: LPG stands for liquefied petroleum gas, which is used as fuel for vehicles, including trucks designed to transport it.

Q: What is the capacity of a propane tanker truck?

A propane tanker truck typically has a capacity ranging from 5,000 to 10,000 gallons (approximately 19,000 to 38,000 liters).

Q : What is the capacity of a gas tanker truck?

A gas tanker truck can hold between 5,000 to over 11,000 gallons (approximately 19,000 to 42,000 liters) depending on its design.

Q : What is the size of an LPG tanker?

The size of an LPG tanker varies, but it generally has a capacity of around 28 m³ (about 7,400 gallons).

Q : How much does an LPG tanker cost?

The cost of an LPG tanker can range from $25,000 to $100,000 or more, depending on specifications and features.
