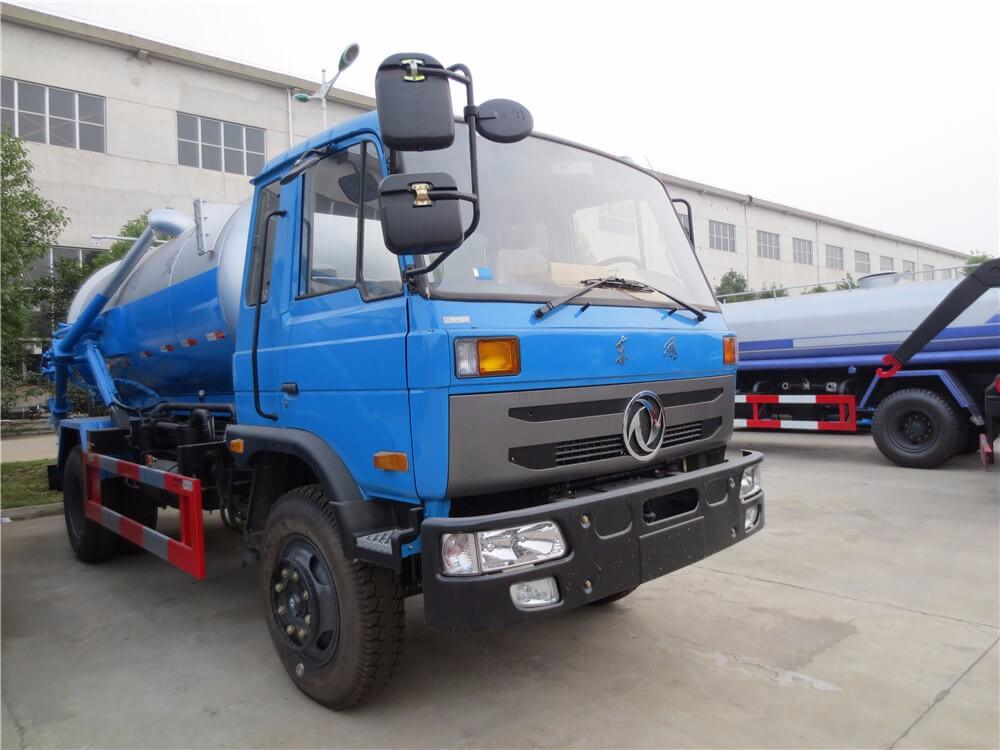

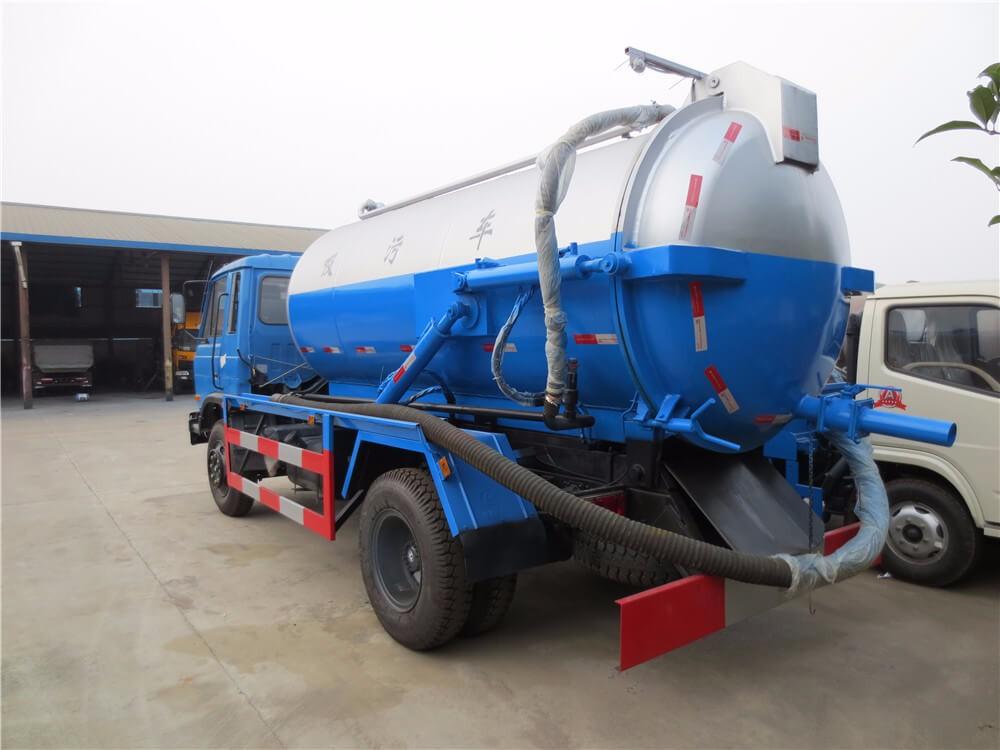

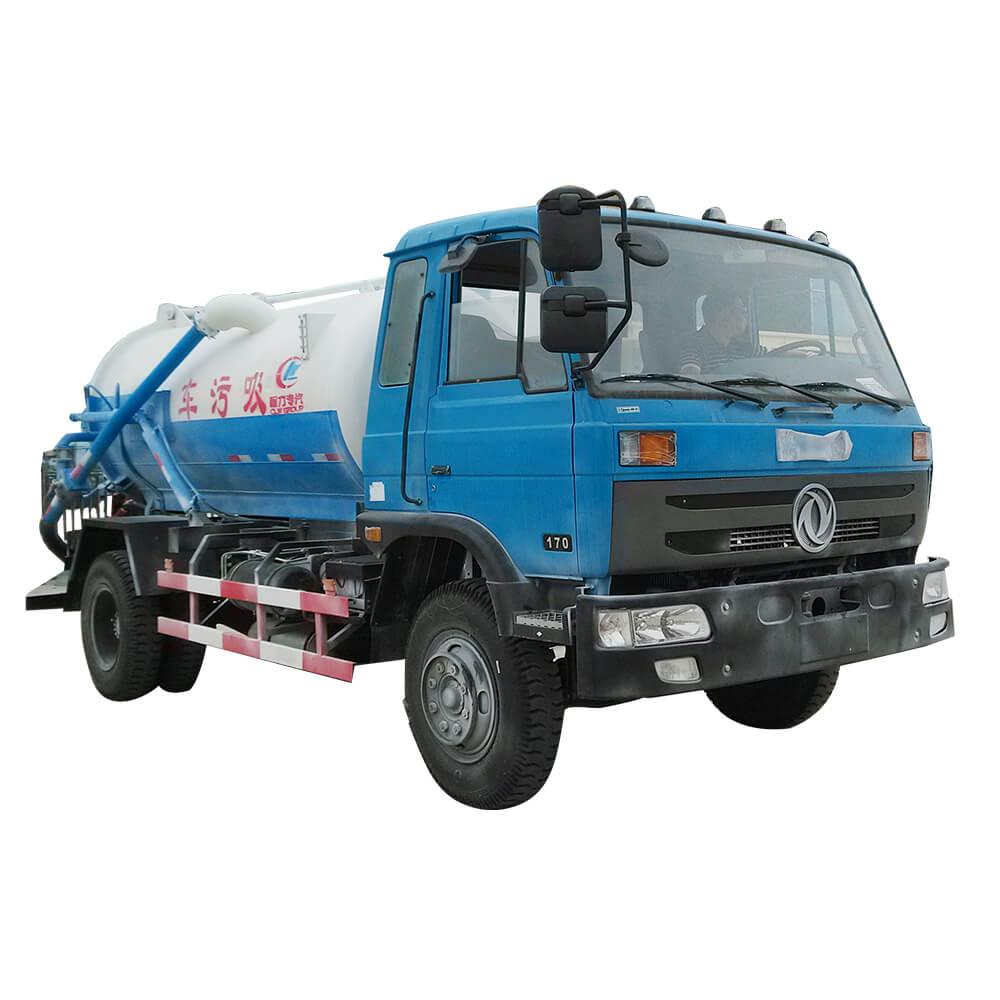

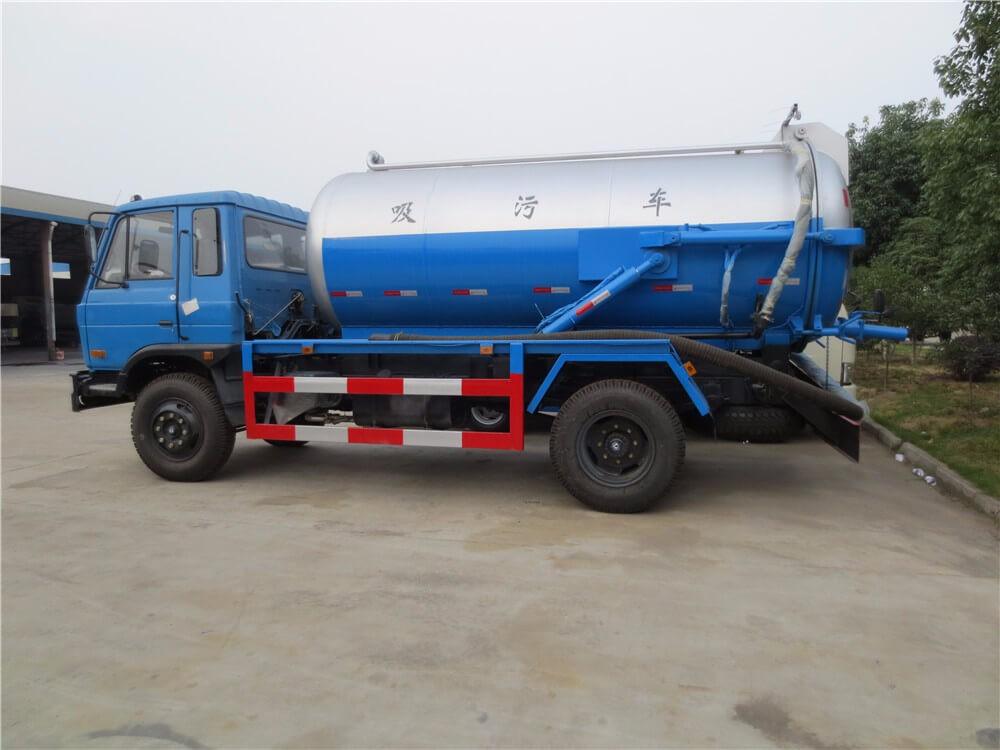

Dongfeng 8 Cbm Sewage Tank
8 cbm sewage tank is installed on 6 wheel dongfeng cargo chassis, have 8 cbm sewage capacity, equipped with China top vacuum pump, all necessary pipeline and valve, etc. 8 cbm sewage tank is made of 5mm high quality carbon steel, 8 cbm sewage tank is designed according to fact environment protection need in China city. Can dispose all kinds sewage water, sludge, waste water, etc.
8 cbm sewage tank mounted on dongfeng mature cargo chassis , equipped with Dongfeng Cummins engine, have very high reputation in Africa. Really use worry-free, safe and reliable.
 |
 |
 |
 |
Dongfeng 8 Cbm Sewage Tank
Product Features
-
Self-priming, self-discharging, rear door opening and closing controlled by Hydraulic
-
Mounted with China top WEILONG brand vacuum pump with large suction power and long suction distance
-
Option high pressure cleaning, watering, etc function.
Main parameter
|
Product Name |
DONGFENG 8 cbm sewage tank |
|
Driving Type |
4×2 |
|
Weight /Volume |
|
|
Tank Volume(cbm) |
8 |
|
Rated payload weight(kg) |
8000 |
|
Dimensions |
|
|
Wheelbase(mm) |
3970 |
|
Overall Dimension(mm) |
7895×2300×3100 |
|
Engine |
|
|
Engine brand & model |
DONGFENG Cummins,B170 33 |
|
Engine type |
4 stroke, water-cooled, straight line 6 cylinders, diesel |
|
Displacement(L)/Power(kw) |
5.9/125 |
|
Chassis |
|
|
Axle Quantity |
2 |
|
Transmission Type |
FAST 8 forwards,1 reverse gear, manual |
|
Steering Type |
LHD or RHD with power steering |
|
Brake system |
Air brake |
|
Tire Spec. & size |
9.00R20, 6 with a spare |
|
Cab |
|
|
Standard configuration |
Flat proof, single sleeper, electric window, central lock, radio |
|
Air conditioning |
Have |
|
Performance parameter of dongfeng 8 cbm sewage tank |
|
|
Tank shape |
Cylinder body |
|
Tank material |
Q235 carbon steel 5mm shell, 6 mm cover head( option: stainless steel) |
|
Standard configuration |
1.with one high quality Weilong brand special vacuum pumps, vertical suction lift is about 7-9m. |
|
2.Accessory: inspect window, one gravity mouth, cleaning apparatus, 5 meter long suction pipe, oil-water separators, overflow valve, rear door controlled by hydraulic, etc, |
|
Product detail
A: We are both. We have operated our own factory for over a decade and recently established a trading company to better serve our overseas customers. We welcome your inquiries and factory visits. A: Our delivery time usually ranges from 20 to 50 days after receiving the advance payment. The exact timeline depends on the specific items and quantities in your order. A: We maintain strict quality control standards through our ISO9001:2008 certified system. Additionally, our professional Quality Control team conducts thorough inspections to guarantee the excellence of our products. A: We require a 40% deposit via T/T (Telegraphic Transfer), with the remaining 60% due before delivery. We will provide photos of the products and packaging for your approval before the final payment. A: Large trucks are typically shipped via RORO (Roll-On/Roll-Off) or bulk cargo ships. Smaller vehicles can be transported in containers. Please contact us for a detailed shipping quotation. A: Absolutely. We can design and manufacture customized products to meet your specific requirements. A: We offer a five-year warranty on our products, covering manufacturing defects. If any quality issues arise within this period, we will repair or replace the product at our expense. For issues outside the warranty coverage, we provide after-sales service at the customer’s expense.
Q: Are you a trading company or a manufacturing factory?
Q: What is your typical delivery time?
Q: How do you ensure product quality?
Q: What are your payment terms?
How are your trucks shipped?
Q: Do you offer customized products?
Q: What kind of after-sales service do you provide?
Q: How much suction does a vacuum truck have?
A: Vacuum trucks can achieve a maximum vacuum pressure of approximately -0.097 to -0.093 MPa, depending on the model and specifications.
Q: What is a vacuum truck called?
A: A vacuum truck is also known as a vacuum tanker, vactor truck, or vac-con truck.
Q: How much can a VAC truck hold?
A VAC truck typically has a tank capacity ranging from 2.7 to 10 m³ (approximately 700 to 2,600 gallons) depending on the model.
Q: What is the flow rate of a vacuum truck?
A vacuum truck's flow rate can vary, typically ranging from 12 to 75 m³/min depending on the pump and configuration.
Q: What is a suction truck?
A suction truck is another term for a vacuum truck, designed to suck up liquids, sludges, and debris using pneumatic suction.
Q : How does a vacuum truck pump work?
A vacuum truck pump creates negative pressure inside the tank, allowing it to suck materials through a hose into the tank.
Q : How does a vacuum truck work?
A vacuum truck works by using a pump to create suction, drawing liquids or debris into its tank through hoses for transport and disposal.
